POE HAT (C) for Raspberry Pi 4B/3B+, Power Over Ethernet HAT, Support IEEE 802.3af/at-Compliant Network,12V and 5V Power Outputs to Use More Peripherals
Product details
| Management number | 228903616 | Release Date | 2026/05/31 | List Price | $9.98 | Model Number | 228903616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

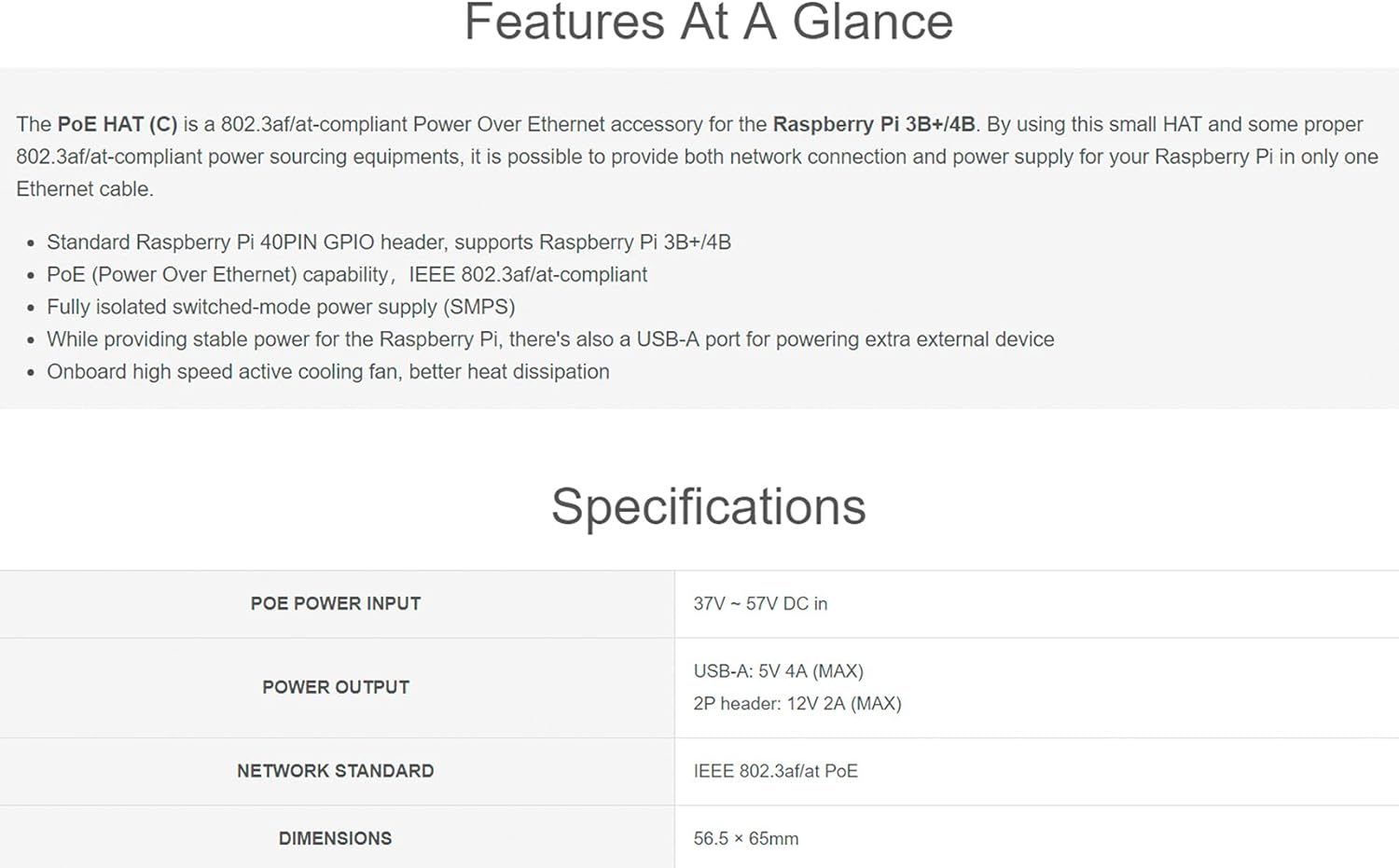

Overview The PoE HAT (C) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Features Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant Fully isolated switched-mode power supply (SMPS) While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device Onboard high speed active cooling fan, better heat dissipation Main Features: 1. For use with Raspberry Pi 3B+/4B---Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs. 2. Power Over Ethernet---providing both network connection and power supply for your Raspberry Pi in one cable. 3. 5V USB-A & 12V header outputs---5V USB-A provides up to 4A output (MAX 25W for 12V+5V total output power) ,be able to power extra device while providing stable power to Raspberry Pi 4. Onboard MP8676 buck chip---Incorporates original voltage buck chip, providing up to 4.5A output for Raspberry Pi and USB-A port Specifications POE input voltage: 37V ~ 57V DC input POE-USB Type A output voltage: 5V 4A (MAX) POE-Pin header output voltage: 12V 2A (MAX) Network standard: Support IEEE 802.3af/at PoE Product size: 56.5 × 65mm Resources/User Manual: //bit.ly/3SUne98 Package Content PoE HAT (C) x1 Heatsink x1 Standoffs pack x1
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
- PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device
- Onboard high speed active cooling fan, better heat dissipation
| ASIN | B0936PRFZJ |
|---|---|
| Brand | waveshare |
| Color | PoE HAT (C) -5V 4A / 12V 2A |
| Manufacturer | Waveshare |
| Model Number | BC- PoE HAT (C) for Pi 3B+/4B |
| BuiltIn Media | PoE HAT (C), Heatsink, Standoffs pack |
| Mfr Part Number | BC- PoE HAT (C) for Pi 3B+/4B |
| Compatible Devices | Raspberry Pi 3B+, Raspberry Pi 4B |
| Hardware Interface | Ethernet, USB |
| Item Dimensions L x W x H | 2.55"L x 2.23"W x 0.27"H |
